- Size: 15*20*8
- Place of Origin: zhejiang china
- Brand Name: ANDELI
- Model Number: AM1
- Weight: 1.000 kg

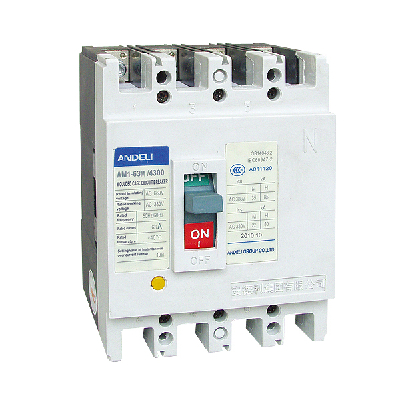

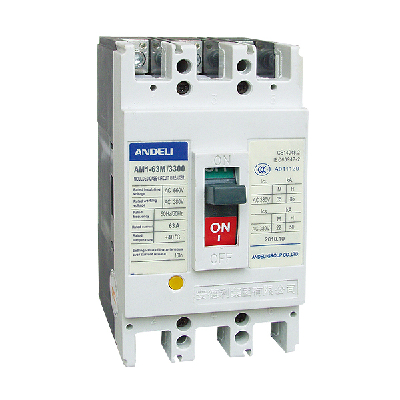

AM1 series moulded case circuit breaker is one of products developed and manufactured by adopting international advanced technology. It is supplied with rated insulating voltage 550 and 800V and used for circuit of AC 50/60Hz, rated operating voltage AC 400V (or below), rated operating current up to 1600A for infrequent changing over and starting of the motors.The products conforms to IEC60947-2 standard.
- Size: 15*20*8
- Place of Origin: zhejiang china
- Brand Name: ANDELI
- Model Number: AM1
- Weight: 1.000 kg
Main Technical Specification(table1)
| Type | Rated current (A) | Polenum-ber | Ratedinsui-atingvolt-age(V) | Rated operat-ingvolt-age(V) | Arcing- over distance (mm) | Ultimate short circuit breaking capacity (KA) | Servies short circuit breaking capacity (KA) | Operation perform- ance | Utiliza-tioncat-egory | |
| Load | Unload | |||||||||
| AM1-63L | (6),10 16,20 25 ,32 40,50 63 | 3, 4 | 500V | 400V | 0 | 25 | 18 | 1500 | 8500 | A |
| AM1-63M | 0 | 50 | 35 | |||||||
| AM1-100L | (10),16 20,25 32,40 50,63 80,100 | 800V | 0(≤50) | 35 | 22 | |||||
| AM1-100M | 0(≤50) | 50 | 35 | |||||||
| AM1-100H | 0(≤50) | 85 | 50 | 1000 | 7000 | |||||
| AM1-225L | 100,125 160,180 200,225 | ≤50 | 35 | 22 | ||||||
| AM1-225M | ≤50 | 50 | 35 | |||||||
| AM1-225H | ≤50 | 85 | 50 | 1000 | 4000 | |||||
| AM1-400L | 225,250 315,350 400 | ≤50 | 50 | 35 | ||||||
| AM1-400M | ≤100 | 65 | 42 | |||||||
| AM1-630L | 400,500 630 | ≤100 | 50 | 35 | ||||||
| AM1-630M | ≤100 | 65 | 42 | |||||||
| AM1-630H | ≤100 | 100 | 65 | |||||||
| AM1-800M | 630,700 800 | 3 | ≤100 | 75 | 50 | |||||
| AM1-800H | ≤100 | 100 | 65 | |||||||
| AM1-1250M | 1000,1250 | ≤100 | 100 | 65 | ||||||
| AM1-1250H | ≤100 | 125 | 75 | |||||||
| AM1-1600M | 1600 | ≤100 | 150 | 80 | ||||||
Note: 6A without thermal protection
The N-pole of four-poles breaker is sited at the right side of the product has four types:
Type A: Without current trip-lease on N pole which making all the time, not closing and opening with the other three poles.
Type B: Without current trip-release on N pole which closing and opening with the other poles.
Type C: With current trip-release which closing and opening with the other three poles.
Type D: With current trip-release which making all the time not closing and opening with the other three poles.
Protection Characteristic
The
thermodynamic release of a circuit breaker provides the feature of
inverse time-delay, while the magnetic release is the instantaneous
operation as shown on table 2(distribution circuit breaker) and table 3
(motor protection circuit breaker).
Table2
| Rated current of release (A) | Thermodynamic release( ambient temperature ) land 40°C marine 45°C | Operating current of magnetic release (A) | |
| 1.05In(cold state) Inoperative time(h) | 1.30In(heat state) Operative time(h) | ||
| 10≤In≤63 | ≥ 1 | < 1 | 10In±20% |
| 63<In≤100 | ≥ 2 | < 2 | |
| 100≤In≤800 | ≥ 2 | < 2 | 5In±20% 10In±20% |
Table3
| Rated current | Thermodynamic release ( ambient temperature ) land 40°C marine 45°C | Operating current of magnetic release (A) | |||
| of release (A) | 1.0In(cold state) non-trip time(h) | 1.20In(heat state) trip time (h) | 1.50In(heat state) trip time (h) | 7.2In(cold state) trip time(h) | |
| 10 ≤ In ≤ 225 | ≥ 2 | <2 | ≤ 4min | 4s < Tp ≤ 10s | 12In±20% |
| 225 ≤ In ≤ 630 | ≤ 8min | 6s < Tp ≤ 20s | |||
