Product Details
- Place of Origin: zhejiang china
- Brand Name: ANDELI
- Model Number: SVC

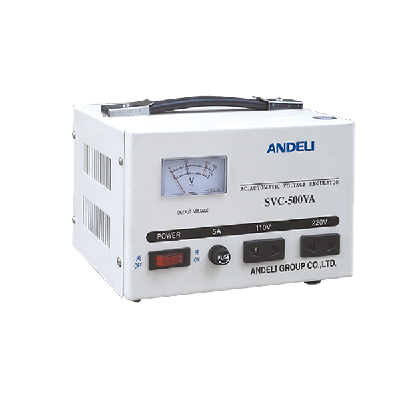

1.Application
SVC automatic voltage stabilizer consists of contact voltage regulator,sampling control cir-cuit and servomotor as well.It has excellent features,such as small waveform distortion,highefficiency,high power factor,free from the effect or frequency variation of supply.It can bewidely used in most situations where the voltage stabilization is required.
- Place of Origin: zhejiang china
- Brand Name: ANDELI
- Model Number: SVC
2.Specification
| Input voltage | 150V-250V |
| Output voltage | 220V±3%, 110V±3% |
| Frequency | 50H/60Hz |
| Response time | <1sec.(against 10% input voltage deviation) |
| Efficiency | >90% |
| Ambient temperature | -10oC~±40oC |
| Relative humidity | <90% |
| Waveform distortion | Non-lack fidelity waveform |
| Power factor cos∮ | 0.8 |
| Insutalion resistance | >5MΩ |
3. Outline and packing
| Type | Outline(cm) | Weight(Kg) | Qty/CTN | ||
| L | W | H | |||
| SVC-500VA | 18.5 | 15 | 12.5 | 17 | 4PCS |
| SVC-1000VA | 21 | 18 | 14.5 | 20 | 4PCS |
| SVC-1500VA | 21 | 18 | 14.5 | 25 | 4PCS |
| SVC-2000VA | 27.5 | 23.5 | 18.5 | 7.8 | 1PC |
| SVC-3000VA | 29 | 23 | 22 | 9.8 | 1PC |
| SVC-5000VA | 45 | 24 | 18.5 | 14 | 1PC |
| SVC-7500VA | 47 | 26 | 22 | 19.5 | 1PC |
| SVC-10000VA | 47 | 26 | 22 | 24.5 | 1PC |
| SVC-15000VA | 42 | 38 | 73 | 35 | 1PC |
| SVC-20000VA | 42 | 38 | 73 | 68.5 | 1PC |
| SVC-30000VA | 42 | 38 | 83 | 80 | 1PC |
| SVC-5000VA | 28 | 30 | 46 | 19 | 1PC (Cabinet) |

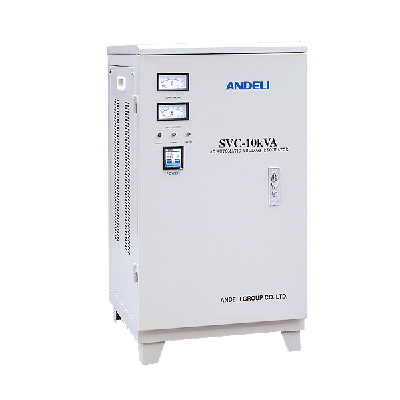

| SVC-10000VA | 44 | 32 | 56 | 31 | 1PC (Cabinet) |
